Technical data
| Sizes | 20 | 21 | 23 | 24 | 26 | ||
|---|---|---|---|---|---|---|---|
| TOTAL WEIGHT IN FLIGHT | MIN-MAX | kg | 65-80 | 75-90 | 85-100 | 95-113 | 110-125 |
| OPT. WEIGHT IN FLIGHT | kg | 75 | 85 | 95 | 107 | 120 | |
| CELLS | NUMBER | 80 | 80 | 80 | 80 | 80 | |
| ASPECT RATIO | FLAT | 6.9 | 6.9 | 6.9 | 6.9 | 6.9 | |
| PROJECTED | 5.3 | 5.3 | 5.3 | 5.3 | 5.3 | ||
| AREA | FLAT | m² | 19.7 | 21 | 22.5 | 24 | 26 |
| PROJECTED | m² | 16.73 | 17.84 | 19.11 | 20.38 | 22.08 | |
| SPAN | FLAT | m | 11.66 | 12.03 | 12.46 | 12.87 | 13.39 |
| CHORD | MAXIMUM | m | 2.14 | 2.21 | 2.29 | 2.37 | 2.46 |
| LINES | TOTAL | m | 195 | 201 | 209 | 216 | 225 |
| MAIN | 2-1/3 | 2-1/3 | 2-1/3 | 2-1/3 | 2-1/3 | ||
| RISERS | NUMBER | A-A’/B | A-A’/B | A-A’/B | A-A’/B | A-A’/B | |
| SPEED-BAR | mm | 145 | 180 | 180 | 180 | 180 | |
| GLIDER WEIGHT | kg | 4.45 | 4.70 | 5.00 | 5.25 | 5.50 | |
| CERTIFICATION | EN/LTF D | EN/LTF D | EN/LTF D | EN/LTF D | EN/LTF D | ||
The total weight of the wing may differ ±2% due to variations in the weight of the fabric supplied by the manufacturers.
Colours

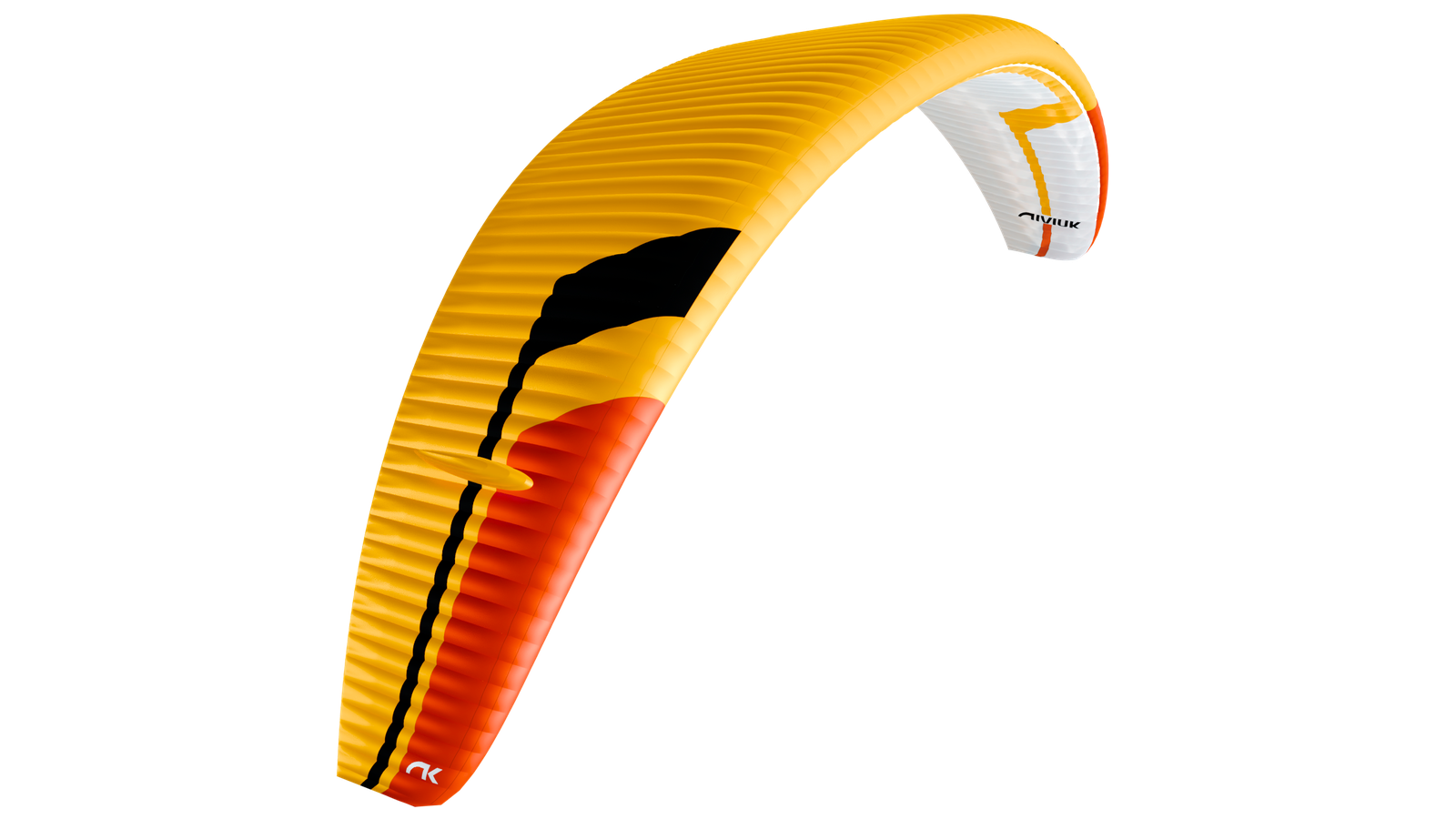

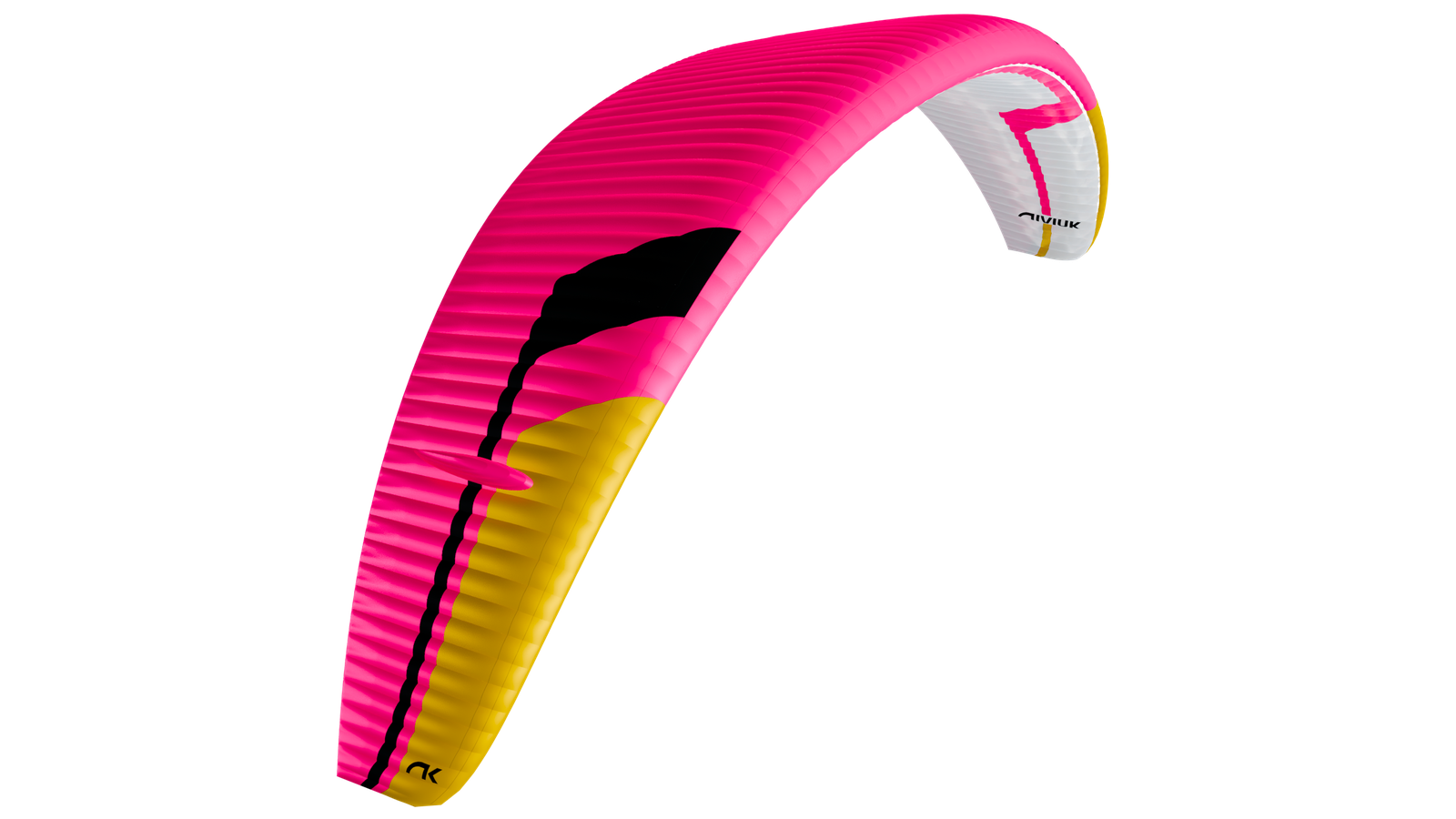

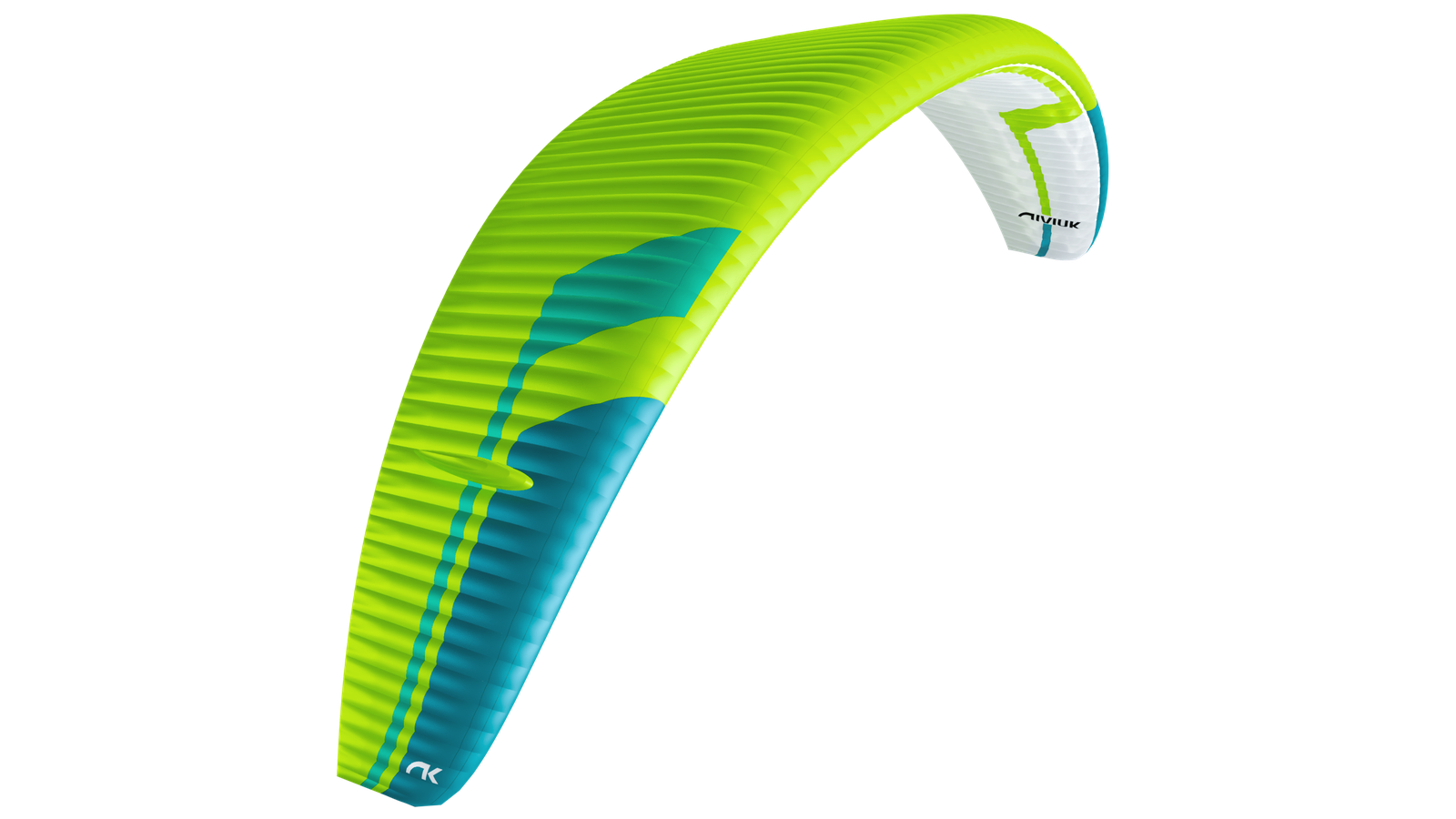

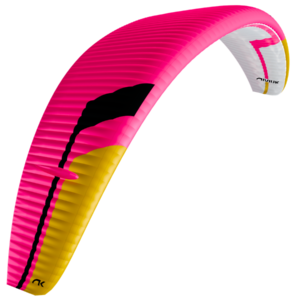

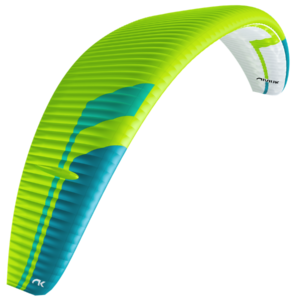

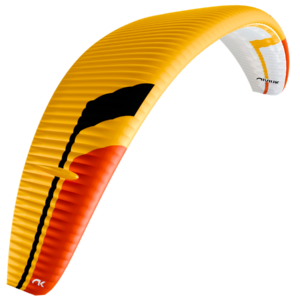

Standard colours: Venus, Azara, Petal.
Colour graphics are indicative only; real-life appearance can vary with lighting.
Package
- Wing
- Nkare bag
- Ergo handles
- Repair kit
Peak 7: THE PLEASURE OF FLYING FAST
More efficient performance
The glide ratio has been improved, particularly at high speed. The Peak 7 retains energy more efficiently and delivers superior performance during transitions. In flight, it provides the feedback needed to find the best transition lines and maintain your intended flight path.
Greater stability
Stability has been optimised on all axes. The wing behaves much more cleanly in turbulence, inspires greater confidence and requires fewer corrections throughout the flight.
More precise and enjoyable handling
Brake response is more direct and immediate. The Peak 7 turns exactly where the pilot intends, delivering natural and precise handling.
Target
Cross-Country
The Peak 7 is designed for pilots looking to cover long distances with maximum efficiency. More comfortable and less demanding, it optimises every flight so you can make the most of every moment.
Competition
A high-performance two-liner designed for experienced pilots. Its stable behaviour, even at full speed, allows you to fly fast with confidence and maintain a high level of performance throughout the task.
Niviuk Technologies
New airfoil
The new airfoil provides significantly greater stability. The wing efficiently damps pitch movements without losing energy. The surface area has been reduced across all sizes while maintaining the same aspect ratio (6.9) and number of cells (80).
Constant pressure
The new INS (Intake Stabiliser) technology maintains higher internal pressure. This helps preserve the airfoil shape, reduces deformations and vibrations, and improves aerodynamic efficiency.
Integrated wiglets
The new winglets design reduces roll and improves stability in turbulence. The wing maintains a cleaner, more efficient flight path, improving glide and overall performance.
Optimised line plan
The new upper lines are made from a new material with greater resistance to wear: Edelrid 9200. They provide increased durability without compromising performance.
Greater durability
The Nitinol rods integrated into the profile extend the wing’s service life and preserve its shape, even after repeated compact packing.
Ergo handle
The Peak 7 comes equipped with Niviuk’s Ergo handle, specifically designed for two-line wings. It enables more precise, comfortable and efficient B-riser control.
PLEASE ADD £450 FOR CUSTOM COLOURS AND CONTACT SIAN FOR ORDER INFORMATION.
