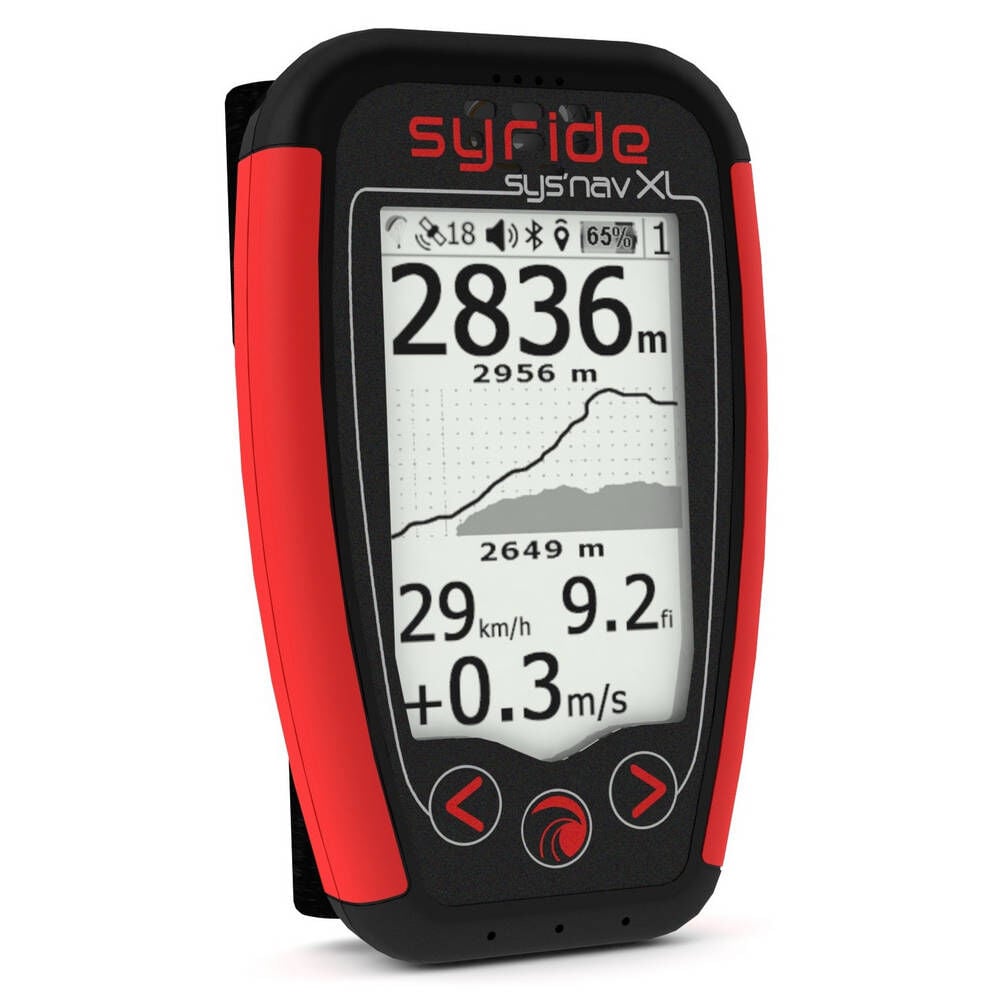

Syride XL

XL: compact technology!

The XL is a new instrument in the range of Syride flight instruments, positioned between Syride Nav and Evo V2. It is not intended to replace the Syride Nav.

Audio

In spite of the bigger screen, we managed to put a 1 Watt speaker into the SYS’Nav XL while respecting the manufacturer’s recommendations to obtain the most perfect sound possible! The pilot will thus have the pleasure to hear the sound of a more harmonious and softer vario. Custom configuration is always possible with our online tool.

Versatile Bluetooth connectivity

Amongst it’s many impressive features the SYS’Nav XL also offers Bluetooth connectivity, in case you’d like to connect it to Android or iOS flight apps. So far this has only been tested with XCTrack (Android) and FlySkyHy (iOS). Syride are also working on a new complimentary flight app, which they say will be released on Google Play store soon as a beta version (with limited features to start) and will on Apple Store this autumn.

USB-C connectivity

Expected for its simplicity of use and its reversibility, the SYS’Nav XL has now a USB type C plug. A new plastic injection mold had to be produced to support these new evolutions (screen, speaker, USB…). The file management has also been completely revised! It will be possible to communicate with the SYS’PC TOOL software as before, but also to access the flight data (IGC files) as if a USB disk had been connected. The pilot gains in convenience, he will be able to use his existing phone or action cam cable to connect the instrument and will not have to use the SYS’PC Tool software to access the flight files.

Battery & charge manager

The surface of the electronic board has been reduced to accommodate a battery with a capacity 45% higher than the Nav (1000mAh against 600mAh), it is essential to meet the needs of the very energy-hungry speaker. It is the level of the sound volume and the activation of the sink sound that will have the most impact
on the battery life of the XL! The addition of a dedicated charge manager allows to have a very precise state of the battery charge value. Voltage variations will not affect the displayed information.

Featherweight & versatile

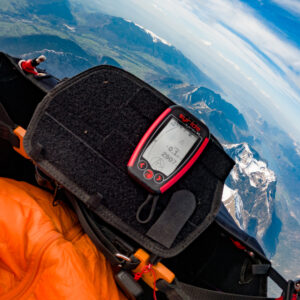

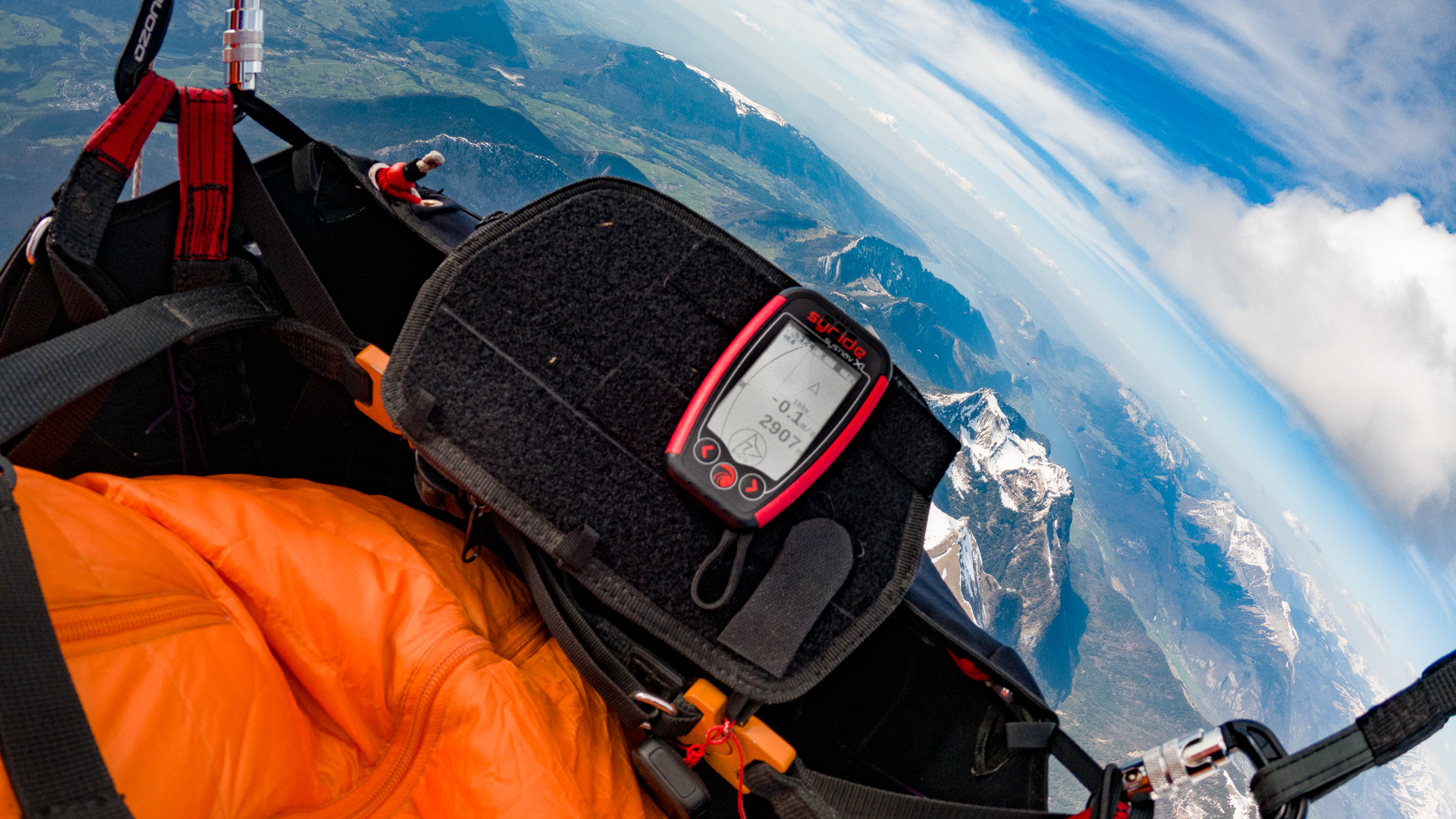

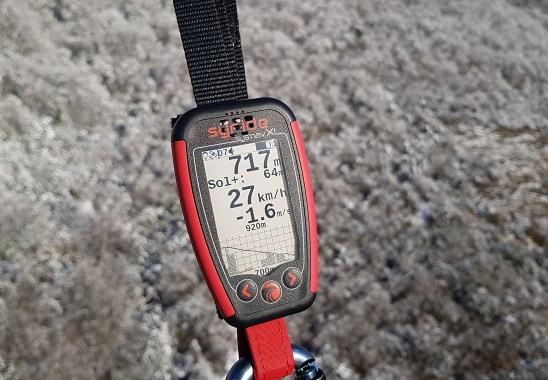

Ultralight and compact, the XL can be mounted a wing riser, leg mount, harness shoulder strap, flight deck, tandem spreader, etc, as with other similar Syride varios. It weighs only 81 grams including the new thinner and lighter hook-and-loop fastener strips.

Features

Complete

• Alti Vario GPS Bluetooth
• Worldwide Airspace
• World topography
• Competition features

Connected

• Live Tracking
• In-flight Ground Weather Station reports
• Automatic flight upload at landing
• Connection with third parties Android/iOS applications

Convenient

• Can be installed on risers for easy reading and access
• Configurable screen
• Ultra readable screen
• Online flight log book
• Automatic screen change

Light

• 81 grams

Display

The 2.7” screen of the XL has an active matrix reflective technology similar to the one used in the EVO V2. The advantages for the pilot are clear:

• Optimum readability outdoors (the more sun, the more contrast)
• Lower power consumption (80% less than a traditional screen and no need for backlighting)

The resolution of the XL screen (400×240 pixels) has been dramatically improved. The pilot can display more information and details on the same screen. The display is also more pleasant to the eye.

Screen customization is therefore much more versatile with the XL, with a wide choice of sizes, resizable items, the ability to add text and frame.

The XL inherits items from the EVO V2 such as the much-appreciated thermal assistant, the competition route summary, the vario graph…

To simplify the pilot’s tasks and limit in-flight handlings, we have added the possibility to change the screen automatically on the XL depending on the current flight phase: Thermalling, in transition, approaching an airspace or approaching a waypoint’s cylinder. The pilot can now focus on flying instead of manipulating buttons in flight.

Technical Info
